Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic

Product Categories
Suzhou Tongda Machinery Co., Ltd.
Contact Now

Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic

Place of Origin : JIANGSU, CHINA

Brand Name : TONGDA

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Supply Ability : 800sets/year

Price : $74,999.00 - $89,999.00/Sets

Certification : CE, ISO9001

MOQ : 1SET

Delivery Time : 28 working days

Payment Terms : T/T, L/C, D/P, West Union

Model Number : HSII-12L

Video outgoing-inspection : Provided

Hollow part volume : 1-12L

Clamping Force (kN) : 158

No. of Screw Heating Zone : 7

Mold Platen Size(Height)(mm) : 500 mm

Die Head Heating Power(kW) : 15 kW

Weight (T) : 15

Suitable bottle : 1-12L

Contact Now

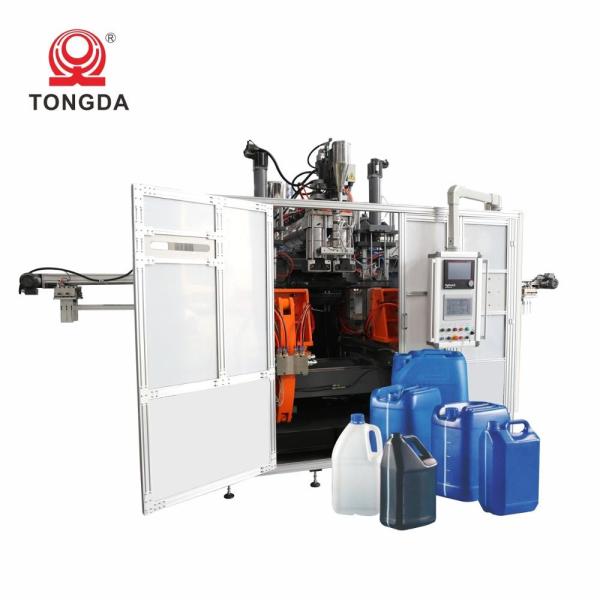

TONGDA HSll12L Fully automatic extrusion hdpe plastic blow molding machine
Product Description

This is our best series machine. This is hydraulic servo system. The clamping unit is elbow style and the clamping force is more uniform. It is high speed and energy-saving. This machine is suitable for stacking product, jerry can, etc. It can be also equipped with several die-heads and then to make the small product.
Technical Parameters
MODEL
Units
HSII-12L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
12
Output of HDPE
kg/h
180
Clamping force
kn
158
Screw diametre
mm
110
Screw heating power
kw
21
Blow pressure
mpa
0.6
Size of machine
m
4.9x3.1x3.2
Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic
Product Details
Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic

Conveyor

Inside the machine body, save space

Company Information
Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic
Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas.
Why Choose Us
Hydraulic 12L HDPE Plastic Blow Molding Machinery Extrusion Fully Automatic
Service Marketing Network
1. Over four thousand Tongda machines have been serving customers all over the world.
2. The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3. our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa, Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: How big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
